RoboJob automates every type of Haas CNC machine with robots that load and unload your workpieces: Haas VF and UMC milling machines as well as ST and DS lathes, to name a few. That works on the Haas you already run and on the new one you are about to buy.

How RoboJob automates your Haas CNC machine

What the robot does

A RoboJob robot takes over the repetitive work at your Haas. It picks a raw workpiece, loads it into the vice or chuck, lets the Haas machine it and unloads the finished part. Your Haas keeps running during breaks, after the shift and at night, while your operators set up the next job, program and check quality.

You set up a new batch yourself in the RoboJob software, in a few minutes and without robot programming. With one click you change the robot speed, the gripping force of the grippers or let the robot grip eccentrically.

Every Haas machine can be automated

RoboJob automates every type of Haas CNC machine: ST, DS and other CNC lathes, VF and other vertical machining centres, UMC 5-axis machines, EC horizontal machining centres and Mini Mills, new or existing. Some of the Haas models we have already automated:

  • Haas VF vertical machining centres, such as the VF-2, VF-2SS, VF-2SSYT and VF-4SS
  • Haas UMC 5-axis universal machining centres, such as the UMC-750
  • Haas ST lathes, such as the ST-20SS and ST-30
  • Haas DS dual-spindle lathes

Is your model not listed? That does not matter: these are examples, not a limit. Our engineers check whether your Haas has an automatic door, automatic workholding and a robot interface, and tell you what is needed if it does not.

Which robot fits your Haas lathe or machining centre?

For Haas lathes
  • Turn-Assist: loads and unloads Haas ST and DS lathes, payload up to 70 kg
  • Pallet-Load: loads and unloads your Haas from pallets, payload up to 165 kg, as on a Haas ST-30
  • Tower: high-mix production around the clock; swaps workpieces, fixtures, jaws and collets, payload up to 165 kg
  • Wall: space-efficient automation that serves several lathes from one system, payload up to 165 kg
  • Coby CNC: collaborative robot for a first step into automation, payload up to 10 kg
For Haas machining centres
  • Mill-Assist: compact loading and unloading for Haas machining centres, payload up to 70 kg, as on a Haas VF-2SS
  • Pallet-Load: automation from pallets, payload up to 165 kg, as on a Haas VF-2
  • Tower: high-mix, low-volume production around the clock; swaps workpieces and fixtures, payload up to 165 kg, as on a Haas UMC-750
  • Wall: space-efficient automation that serves several machining centres from one system, payload up to 165 kg
  • Coby CNC: collaborative robot for a first step into automation, payload up to 10 kg

Not sure which one fits best? Compare all products side by side or take the quick test below.

Find the right robot for your Haas machine

Find the right robot for your Haas machine

Answer four quick questions about your Haas, your workpieces and your batch sizes, and we suggest the RoboJob that suits you best.

Get more spindle hours out of your Haas

Haas users report up to 50% more spindle hours and 16 instead of about 6 spindle hours a day.

Typical payback is 6 to 18 months. Get the brochure, see a RoboJob at work in a demo or request an offer.

Why choose RoboJob for your Haas

Standard automation since 2007

RoboJob develops and builds standard automation for loading and unloading CNC lathes and milling machines. Since 2007 we have installed more than 2,000 robots in over 30 countries, on more than 100 CNC brands. Because every system is a standard product, you know in advance what you get, and installation is fast.

Support close to you

Headquarters and production are in Heist-op-den-Berg, Belgium, with Technology Centers in Germany and the United States. Our engineers know the robot, your Haas and the interface between them, and keep supporting you after installation.

Haas users who automated with RoboJob

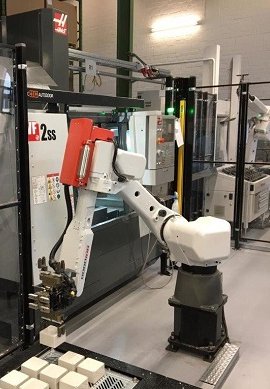

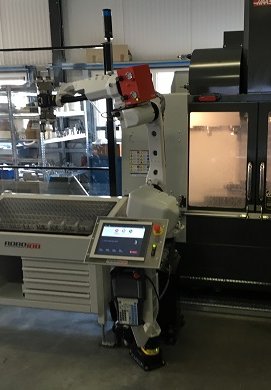

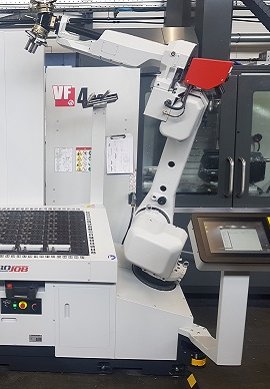

Paricla went from about 6 to 16 spindle hours a day on its Haas VF-2. EFM Präzisionstechnik runs three Haas VF machines with Mill-Assist and gets 50% more spindle hours. Bopla automated a Haas VF-2SS with a RoboJob pallet system. Read their stories below.

Haas users who automated with RoboJob

Paricla went from about 6 to 16 spindle hours a day on its Haas VF-2. EFM Präzisionstechnik runs three Haas VF machines with Mill-Assist and gets 50% more spindle hours. Bopla automated a Haas VF-2SS with a RoboJob pallet system. Read their stories below.

Frequently asked questions about Haas automation

How can I automate my Haas CNC machine?

RoboJob offers several proven automation solutions for Haas machines and has hands-on experience with the VF, UMC, ST and DS series. A RoboJob robot loads raw workpieces into the vice or chuck and unloads the finished parts, so your Haas keeps running during breaks, evenings and nights. The best solution depends on the machine type, your workpieces and your batch sizes. The quick test suggests the right one in four questions.

Which types of Haas machines can be automated?

All of them. RoboJob automates every type of Haas CNC machine: ST, DS and other CNC lathes, VF and other vertical machining centres, UMC 5-axis machines, EC horizontal machining centres and Mini Mills, on new and existing machines. More broadly, RoboJob automates CNC lathes and milling machines of every brand, including turn-mill centres, multitasking machines and even grinding machines. The models on this page are examples, not a limit: if your Haas is not mentioned, RoboJob can still automate it.

How can I automate my Haas lathe?

RoboJob offers several solutions for Haas lathes and has already automated, among others, the ST-20SS and ST-30. The most suitable solutions for a Haas lathe are Turn-Assist, built for loading and unloading lathes with a payload up to 70 kg; Pallet-Load, which loads and unloads from pallets with a payload up to 165 kg; the Tower for high-mix production, which also swaps fixtures, jaws and collets; the Wall, which serves several machines from one space-efficient system; and Coby CNC, a collaborative robot for a first step into automation.

How can I automate my Haas machining centre?

RoboJob offers several solutions for Haas machining centres and has already automated, among others, the VF-2, VF-2SS, VF-2SSYT, VF-4SS and UMC-750. The most suitable solutions are Mill-Assist, a compact system for loading and unloading with a payload up to 70 kg; Pallet-Load, which loads and unloads from pallets with a payload up to 165 kg; the Tower for high-mix production with frequent changeovers, which also swaps fixtures; the Wall, which serves several machines from one space-efficient system; and Coby CNC, a collaborative robot for a first step into automation.

How can I automate a Haas UMC 5-axis machine?

RoboJob has automated the Haas UMC-750 5-axis machining centre with a Tower Advanced. For 5-axis work with many different parts, the Tower is the most suitable solution: it stores workpieces in trays and swaps not only workpieces but also fixtures, so your UMC can run unattended for long periods, with a payload up to 165 kg. For larger batches of similar parts, Mill-Assist, Pallet-Load or the collaborative Coby CNC are lighter alternatives.

Haas cobot or a complete robot cell: which is best for my Haas?

Haas offers its own cobot and robot packages for Haas machines. RoboJob supplies complete standard automation systems, including workpiece storage, grippers, safety, easy-to-use software, installation and service, with payloads up to 165 kg, from the collaborative Coby CNC to the Tower. Because RoboJob works with more than 100 CNC brands, the same system and know-how also serve the other machines in your shop. Compare all products to see which fits.

Can I run my Haas unattended at night?

Yes. With a RoboJob robot loading and unloading your Haas, the machine keeps cutting after the last shift. Paricla finds 96 parts ready in the morning and went from about 6 to 16 spindle hours a day on its Haas VF-2. For unattended nights and weekends with many different parts, the RoboJob Tower offers the most storage and also swaps fixtures.

How much does it cost to automate a Haas CNC machine?

The investment depends on the product, your workpieces and the options you need, so RoboJob makes a quote for your specific Haas. More telling than the price is the payback: a RoboJob typically pays for itself in 6 to 18 months, depending on how many extra spindle hours the robot adds. The ROI calculation shows it for your own figures, or request your offer directly.

What does a Haas machine need before a robot can load it?

A robot-ready Haas needs three things: an automatic door, automatic workholding that the control opens and closes (such as a pneumatic vice or a hydraulic chuck) and a robot interface, so the robot and the Haas control can exchange signals. If your existing Haas lacks one of these, it can usually be retrofitted. RoboJob engineers check your machine and tell you what is needed.

Which Haas machines has RoboJob already automated?

RoboJob robots run on, among others, the Haas VF-2, VF-2SS, VF-2SSYT and VF-4SS vertical machining centres, the Haas UMC-750 5-axis machining centre and the Haas ST-20SS and ST-30 lathes. Haas customers include EFM Präzisionstechnik in Germany, Bopla in Germany and Paricla in the Netherlands. This is only a selection: RoboJob automates every type of Haas machine, so a model that is not listed here can be automated too.

How much more productive does a Haas get with a robot?

That depends on how many hours the robot adds. Paricla went from about 6 to 16 spindle hours a day on its Haas VF-2, and EFM Präzisionstechnik reports 50% more spindle hours on its automated Haas machines than on those without automation. A RoboJob typically pays for itself in 6 to 18 months.

Do I need robot programming skills to automate my Haas?

No. With RoboJob you set up a new job in the software with a few clicks, without writing robot programs, so operators set up a new batch within minutes. At EFM Präzisionstechnik, even a colleague without experience or training programs the robot flawlessly.

How long does it take to install a robot on a Haas?

With a standard system such as a RoboJob, installation takes days rather than weeks. At Bopla the installation took one week. The exact time depends on the product and on whether your Haas first needs an automatic door or a robot interface. Want to see a RoboJob at work first? Request a demo.

Can one robot serve several Haas machines or other CNC brands?

Yes. The RoboJob Wall serves several machines from one system, and RoboJob automates more than 100 CNC brands. A shop with Haas machines next to Mazak, DMG Mori or Okuma machines can work with one automation partner for all of them.

Talk to a specialist about automating your Haas

Tell us which Haas you run and which workpieces you make on it. Our area sales managers know Haas machines well and tell you which RoboJob fits and what it can bring you.
