Spinner CNC automation with RoboJob robots

Spinner CNC automation with RoboJob robots

RoboJob automates every type of Spinner CNC machine with robots that load and unload your workpieces: 5-axis machining centres from this German machine builder, such as the Spinner U5-1530 and U630, as well as Spinner lathes. That works on the Spinner you already run and on the new one you are about to buy.

How RoboJob automates your Spinner CNC machine

What the robot does

A RoboJob robot takes over the repetitive work at your Spinner. It picks a raw workpiece, loads it into the vice or chuck, lets the Spinner machine it and unloads the finished part. Your Spinner keeps running during breaks, after the shift and at night, while your operators set up the next job, program and check quality.

You set up a new batch yourself in the RoboJob software, in a few minutes and without robot programming. With one click you change the robot speed, the gripping force of the grippers or let the robot grip eccentrically.

Every Spinner machine can be automated

RoboJob automates every type of Spinner CNC machine: TC, TTC and other CNC lathes, U5 and U-series 5-axis machining centres and vertical machining centres, new or existing. Some of the Spinner models we have already automated:

  • Spinner 5-axis machining centres, such as the U5-1530 and U630

Is your model not listed? That does not matter: these are examples, not a limit. Our engineers check whether your Spinner has an automatic door, automatic workholding and a robot interface, and tell you what is needed if it does not.

Which robot fits your Spinner lathe or machining centre?

For Spinner lathes
  • Turn-Assist: loads and unloads Spinner lathes, payload up to 70 kg
  • Pallet-Load: loads and unloads your Spinner from pallets, payload up to 165 kg
  • Tower: high-mix production around the clock; swaps workpieces, fixtures, jaws and collets, payload up to 165 kg
  • Wall: space-efficient automation that serves several lathes from one system, payload up to 165 kg
  • Coby CNC: collaborative robot for a first step into automation, payload up to 10 kg
For Spinner machining centres
  • Mill-Assist: compact loading and unloading for Spinner machining centres, payload up to 70 kg, as on a Spinner U630
  • Pallet-Load: automation from pallets, payload up to 165 kg, as on a Spinner U5-1530
  • Tower: high-mix, low-volume production around the clock; swaps workpieces and fixtures, payload up to 165 kg
  • Wall: space-efficient automation that serves several machining centres from one system, payload up to 165 kg
  • Coby CNC: collaborative robot for a first step into automation, payload up to 10 kg

Not sure which one fits best? Compare all products side by side or take the quick test below.

Get more spindle hours out of your Spinner

With a RoboJob, your Spinner keeps producing during breaks, evenings and nights.

Typical payback is 6 to 18 months. Get the brochure, see a RoboJob at work in a demo or request an offer.

Why choose RoboJob for your Spinner

Standard automation since 2007

RoboJob develops and builds standard automation for loading and unloading CNC lathes and milling machines. Since 2007 we have installed more than 2,000 robots in over 30 countries, on more than 100 CNC brands. Because every system is a standard product, you know in advance what you get, and installation is fast.

Support close to you

Headquarters and production are in Heist-op-den-Berg, Belgium, with Technology Centers in Germany and the United States. Our engineers know the robot, your Spinner and the interface between them, and keep supporting you after installation.

Find the right robot for your Spinner machine

Find the right robot for your Spinner machine

Answer four quick questions about your Spinner, your workpieces and your batch sizes, and we suggest the RoboJob that suits you best.

Frequently asked questions about Spinner automation

How can I automate my Spinner CNC machine?

RoboJob offers several proven automation solutions for Spinner machines and has hands-on experience with the Spinner U5 and U-series machining centres. A RoboJob robot loads raw workpieces into the vice or chuck and unloads the finished parts, so your Spinner keeps running during breaks, evenings and nights. The best solution depends on the machine type, your workpieces and your batch sizes. The quick test suggests the right one in four questions.

Which types of Spinner machines can be automated?

All of them. RoboJob automates every type of Spinner CNC machine: TC, TTC and other CNC lathes, U5 and U-series 5-axis machining centres and vertical machining centres, on new and existing machines. More broadly, RoboJob automates CNC lathes and milling machines of every brand, including turn-mill centres, multitasking machines and even grinding machines. The models on this page are examples, not a limit: if your Spinner is not mentioned, RoboJob can still automate it.

How can I automate my Spinner lathe?

RoboJob offers several solutions for Spinner lathes. The most suitable solutions for a Spinner lathe are Turn-Assist, built for loading and unloading lathes with a payload up to 70 kg; Pallet-Load, which loads and unloads from pallets with a payload up to 165 kg; the Tower for high-mix production, which also swaps fixtures, jaws and collets; the Wall, which serves several machines from one space-efficient system; and Coby CNC, a collaborative robot for a first step into automation.

How can I automate my Spinner machining centre?

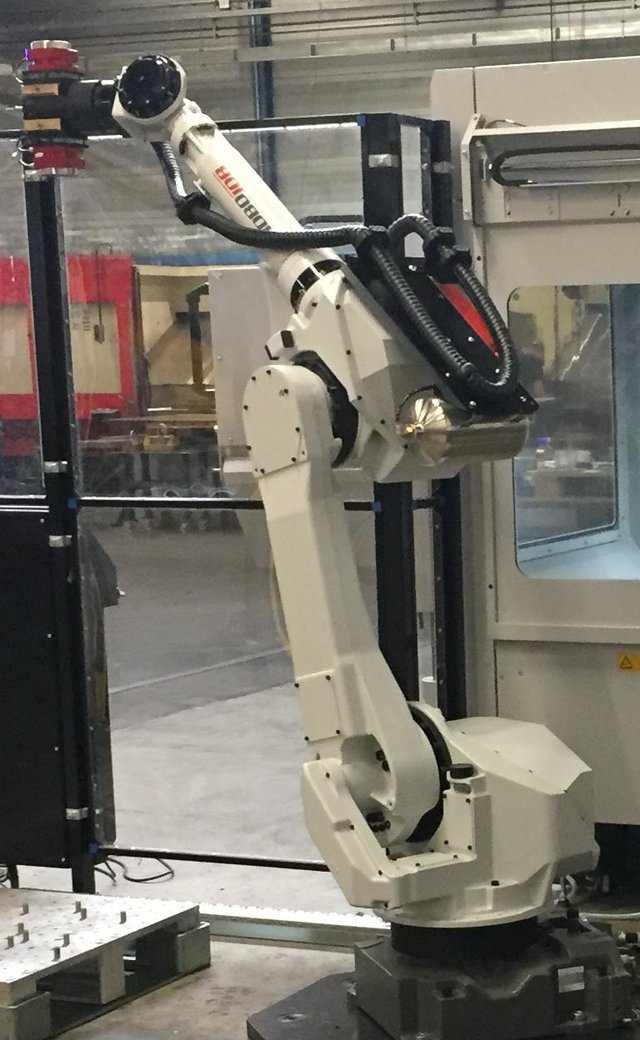

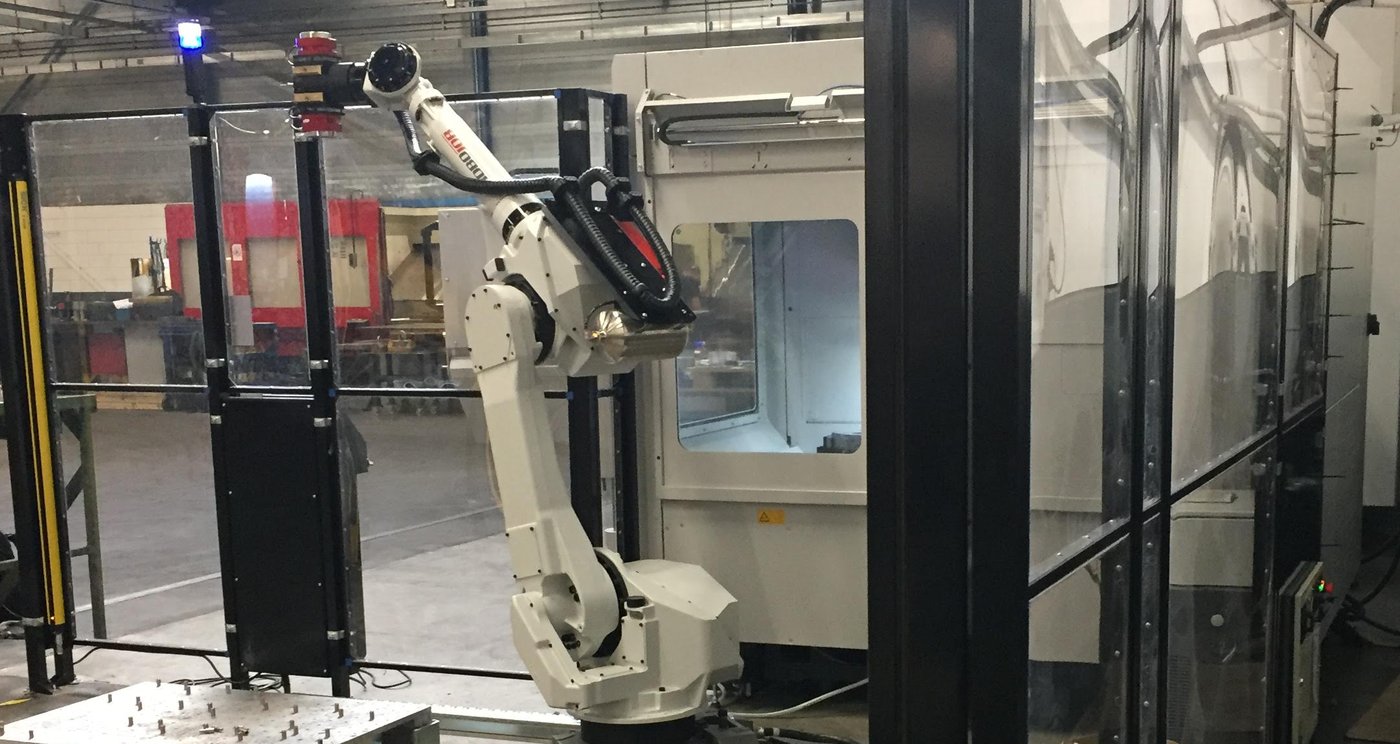

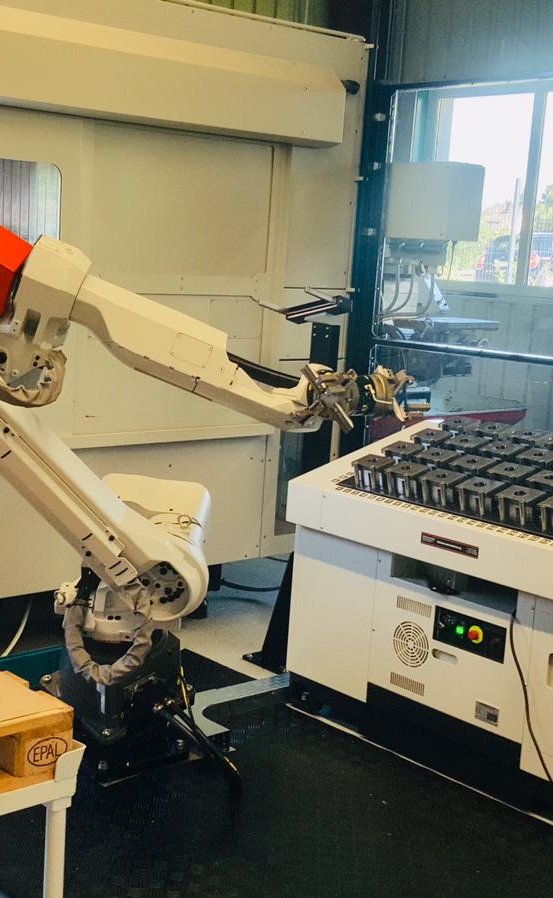

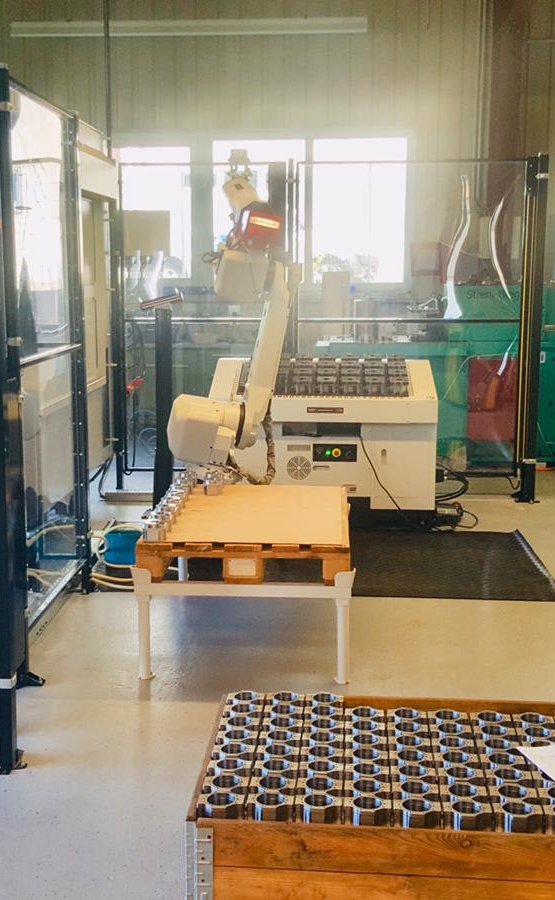

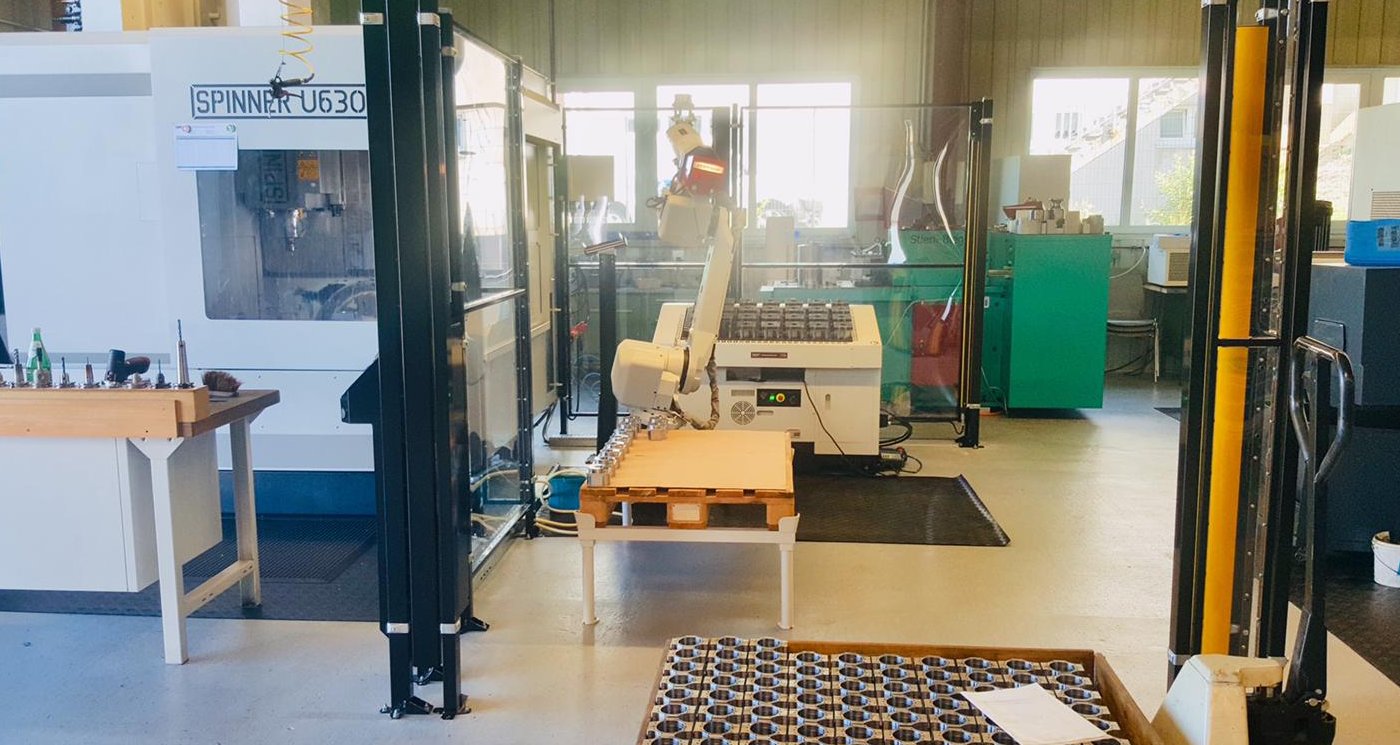

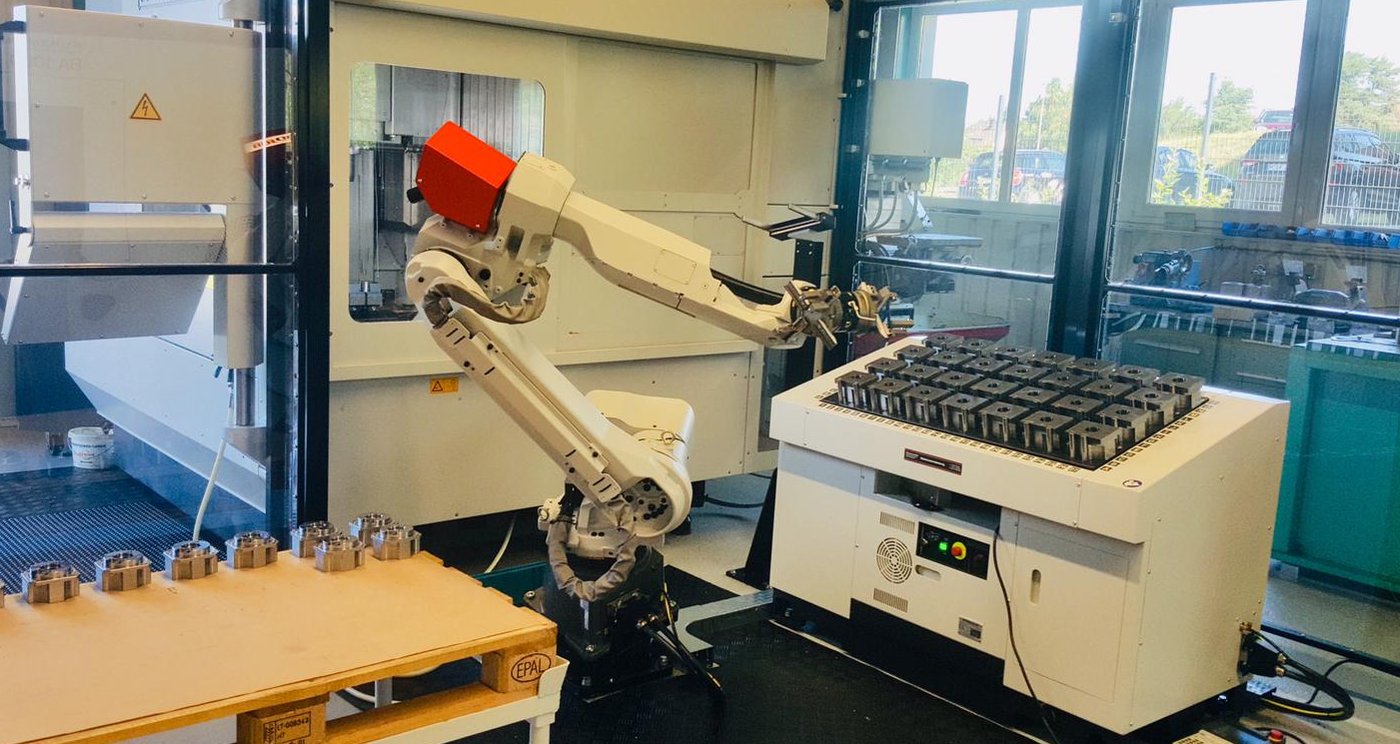

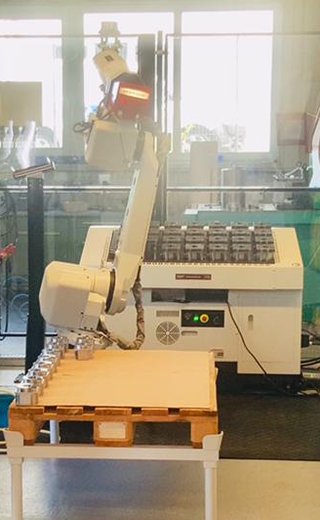

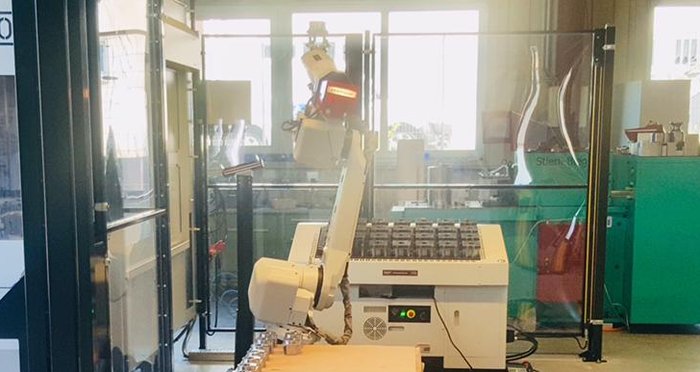

RoboJob offers several solutions for Spinner machining centres and has already automated, among others, the U5-1530 with a Pallet-Load Multi and U630 with a Mill-Assist Essential. The most suitable solutions are Mill-Assist, a compact system for loading and unloading with a payload up to 70 kg; Pallet-Load, which loads and unloads from pallets with a payload up to 165 kg; the Tower for high-mix production with frequent changeovers, which also swaps fixtures; the Wall, which serves several machines from one space-efficient system; and Coby CNC, a collaborative robot for a first step into automation.

Can I run my Spinner unattended at night?

Yes. With a RoboJob robot loading and unloading your Spinner, the machine keeps cutting after the last shift. Many RoboJob customers run their machines unmanned in the evening, at night and at weekends. For unattended nights and weekends with many different parts, the RoboJob Tower offers the most storage and also swaps fixtures.

How much does it cost to automate a Spinner CNC machine?

The investment depends on the product, your workpieces and the options you need, so RoboJob makes a quote for your specific Spinner. More telling than the price is the payback: a RoboJob typically pays for itself in 6 to 18 months, depending on how many extra spindle hours the robot adds. The ROI calculation shows it for your own figures, or request your offer directly.

What does a Spinner machine need before a robot can load it?

A robot-ready Spinner needs three things: an automatic door, automatic workholding that the control opens and closes (such as a pneumatic vice or a hydraulic chuck) and a robot interface, so the robot and the Spinner control can exchange signals. If your existing Spinner lacks one of these, it can usually be retrofitted. RoboJob engineers check your machine and tell you what is needed.

Which Spinner machines has RoboJob already automated?

RoboJob robots run on, among others, the Spinner U5-1530 and U630 5-axis machining centres. This is only a selection: RoboJob automates every type of Spinner machine, so a model that is not listed here can be automated too.

How much more productive does a Spinner get with a robot?

That depends on how many hours the robot adds. In RoboJob customer stories, results range from machine runtime doubled from 40–50 to 80–90 hours a week to twice the output of a machine with an operator. A RoboJob typically pays for itself in 6 to 18 months.

Do I need robot programming skills to automate my Spinner?

No. With RoboJob you set up a new job in the software with a few clicks, without writing robot programs, so operators set up a new batch within minutes.

How long does it take to install a robot on a Spinner?

With a standard system such as a RoboJob, installation takes days rather than weeks. The exact time depends on the product and on whether your Spinner first needs an automatic door or a robot interface. Want to see a RoboJob at work first? Request a demo.

Can one robot serve several Spinner machines or other CNC brands?

Yes. The RoboJob Wall serves several machines from one system, and RoboJob automates more than 100 CNC brands. A shop with Spinner machines next to Mazak, DMG Mori or Okuma machines can work with one automation partner for all of them.

Talk to a specialist about automating your Spinner

Tell us which Spinner you run and which workpieces you make on it. Our area sales managers know Spinner machines well and tell you which RoboJob fits and what it can bring you.
