No batch interruptions with the Flip-Over Unit

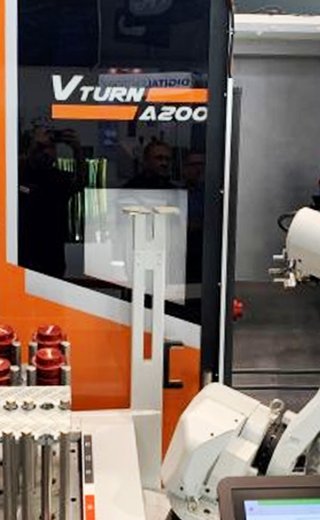

Our Flip-over Module was developed as an addition to any RoboJob system to flip products between two operations of the CNC machine. This enables the component to be loaded into the machine with a different orientation for the next operation.

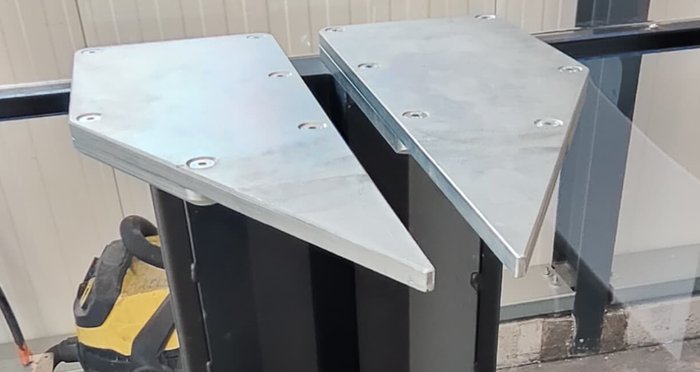

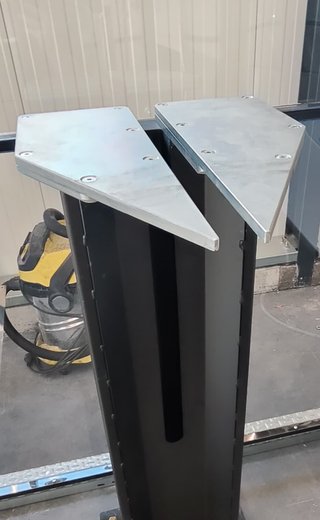

This module includes a physical flip-over stand that we seamlessly integrate into the RoboJob software. In your loading cycle, just drag this flip-over module in and the RoboJob software does the work for you. We calculate the robot's movements to and from this station depending on the dimensions of your product, so you don't have to worry about a thing.

Your win

The Flip-over Module looks like a simple extension to your RoboJob system, but its impact is way bigger than you might think.

  • It enables your CNC machine to work unmanned even longer
  • The higher the amount of spindle hours, the faster your investment is earned back
  • No need to set up an additional chuck
  • Your CNC programmes are easier as you only need to set them up for 1 fixture
  • It simplifies setting up your tools And don't forget:
  • It might even make sub-spindles obsolete

Many customers tell us: "the product comes off my machine finished in one go! This made me considerably decrease the lead time - so I can guarantee shorter delivery times! That gives me more orders with a higher margin!"

Procedureel gegenereerde materialen in Unity

How does it work?

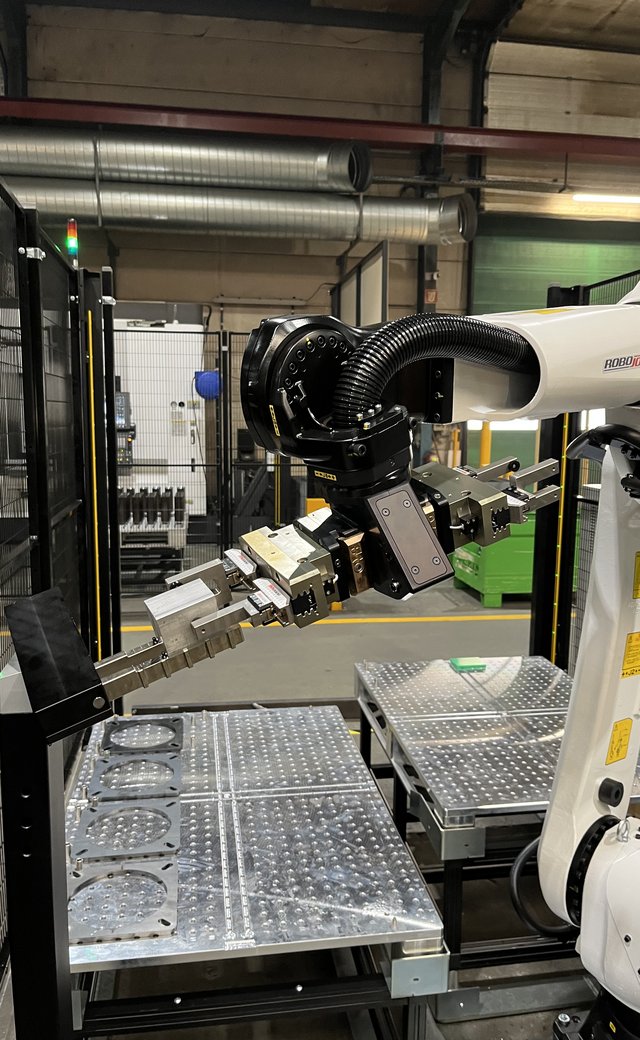

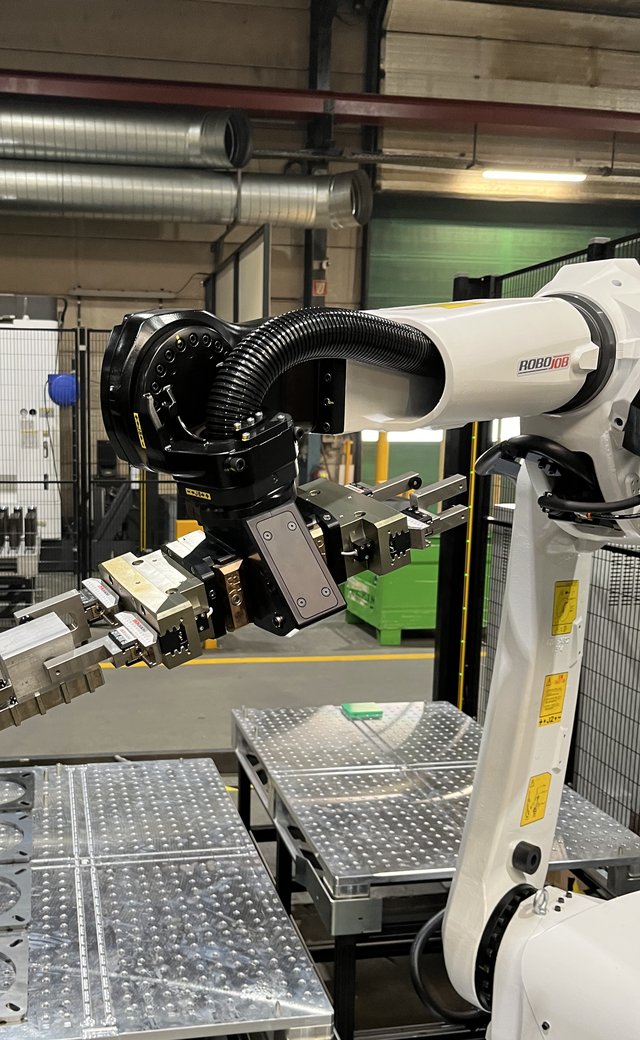

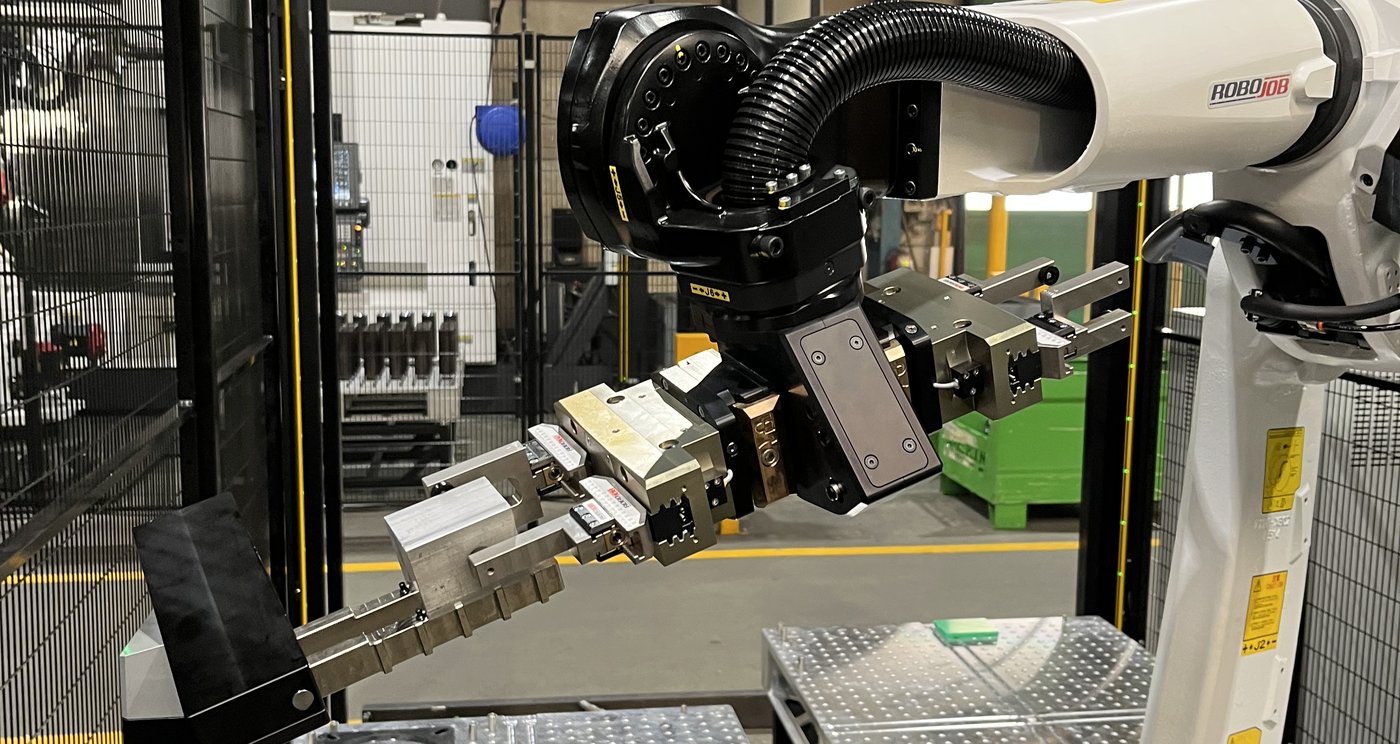

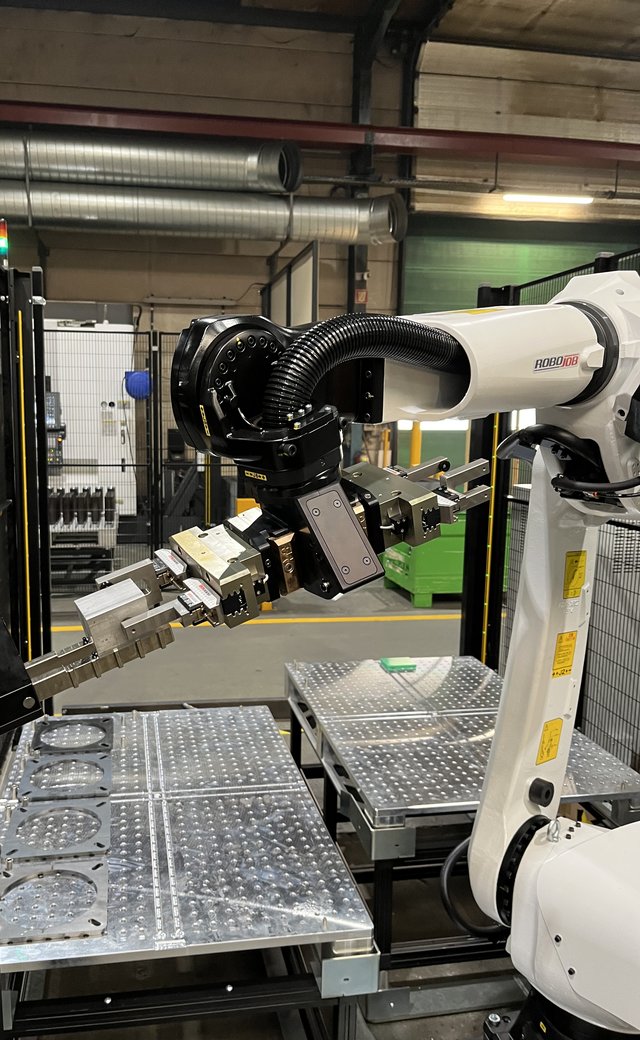

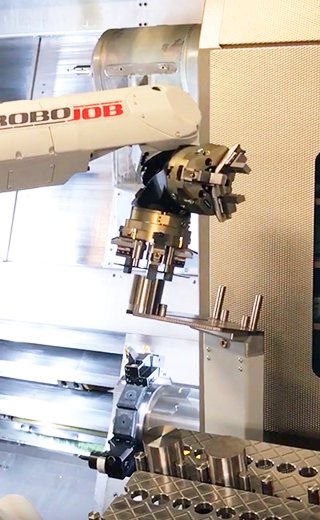

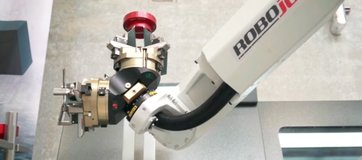

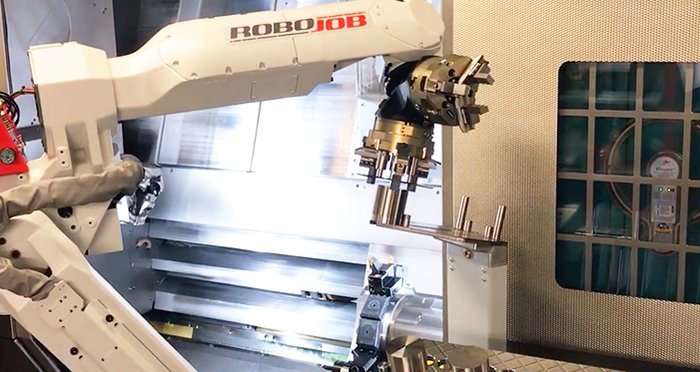

When the CNC machine finishes the first side of your component, the robot is called into the CNC machine to pick up the piece. The robot then exits the CNC machine and loads it onto the Flip-over unit, usually with the unprocessed side up. The robot then flips its gripper and regrips the component in the desired way. It's then loaded into your CNC machine again to continue the batch.

Do you want to rotate your milling product 90° instead of 180°? This is also possible and is included as standard with this module.

Only to be found at RoboJob

Flip over unit - Turn

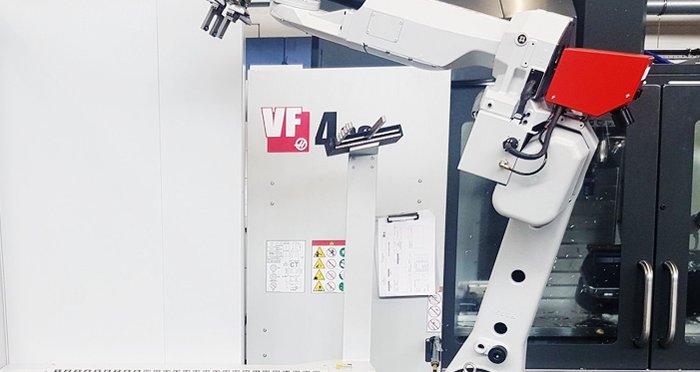

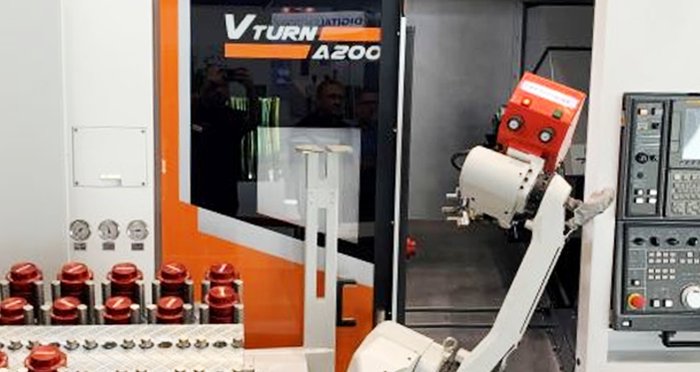

Our Flip-over Module was initially developed for lathes without a sub-spindle. The idea and elaboration excel in simplicity - and was therefore quickly introduced for milling machines as well. Both on 5-axis milling machines where the fixture is prepared for two operations, and on 3-axis milling machines where more than one fixture is used. It is all possible with this module!

Compatible with:

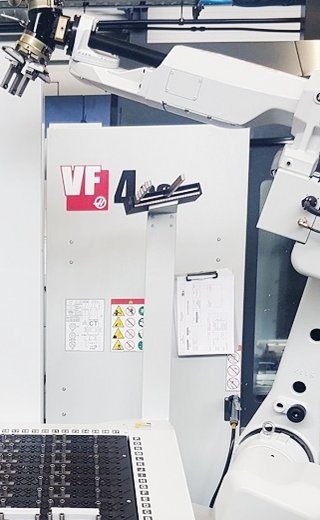

Product - Pallet-Load - Active card - 960x960

Pallet-Load

Product - Mill-Assist Essential

Mill-Assist

RJ_2022_TAi270_25kg_frontview_1000x1000px

Turn-Assist

Tower RoboJob

Tower

RoboJob wall Render

Wall

This simple, but extremely useful extension

completes your RoboJob product.

Installatie - robot

Machining at maximum capacity

An easily configurable, versatile and reliable robot system? That's a RoboJob automation, ideal for small and medium-sized batches. We maximise the performance of your CNC machine, allowing you to respond quicker to incoming orders.

View all products - Service training

Flexible

We offer a lot of flexibility, just like you'd expect. We provide personalized, ongoing support to meet your specific needs, ensuring that your systems perform at their best.

Contact us - Koffie - Hero medium

All-in-one, only at RoboJob

Chipping a combination of different products together is a challenge. And we like to be challenged! Our R&D department has pulled out all the stops to make sure RoboJob is the best, both in the automation of turning and milling machines. We have succeeded in doing just that, and the deployment of the Flip-over Unit is just one example.

Let's discuss this in detail!

Our CNC experts are eager to show you the functionalities of this module. Do you prefer a technical discussion, a live demo or both? We'll make it happen.
